We are selling the GRI-60C and providing details about its operational process.

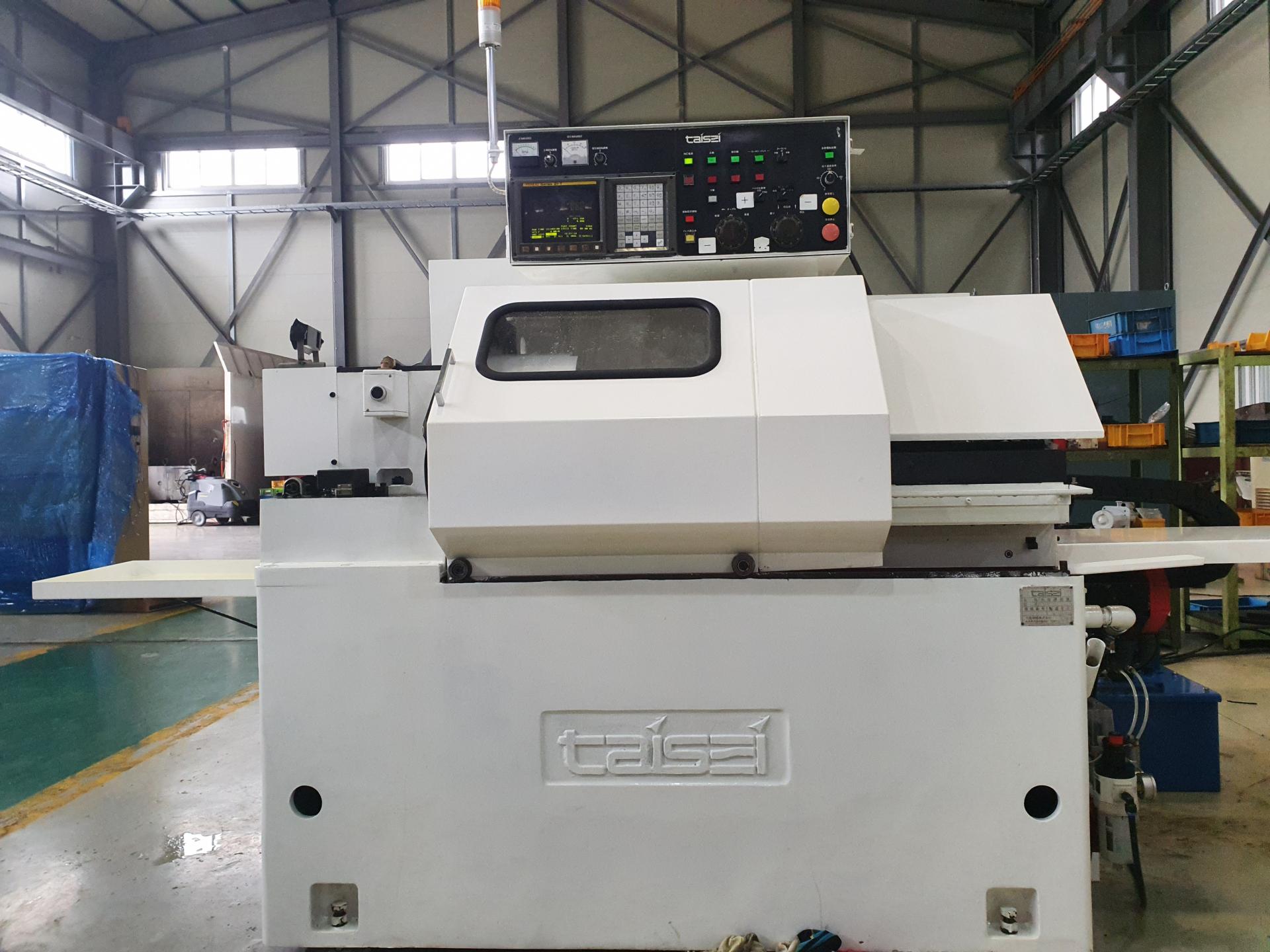

< ▲ 1. Completed Work on TAISEI GRI-60C >

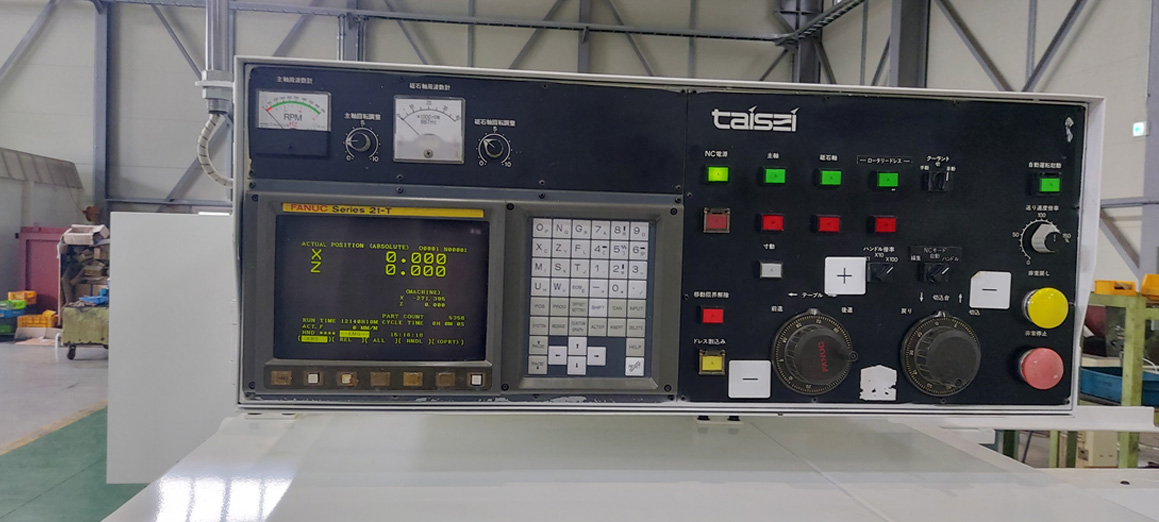

< ▲ 2. Completed Work: OP Panel >

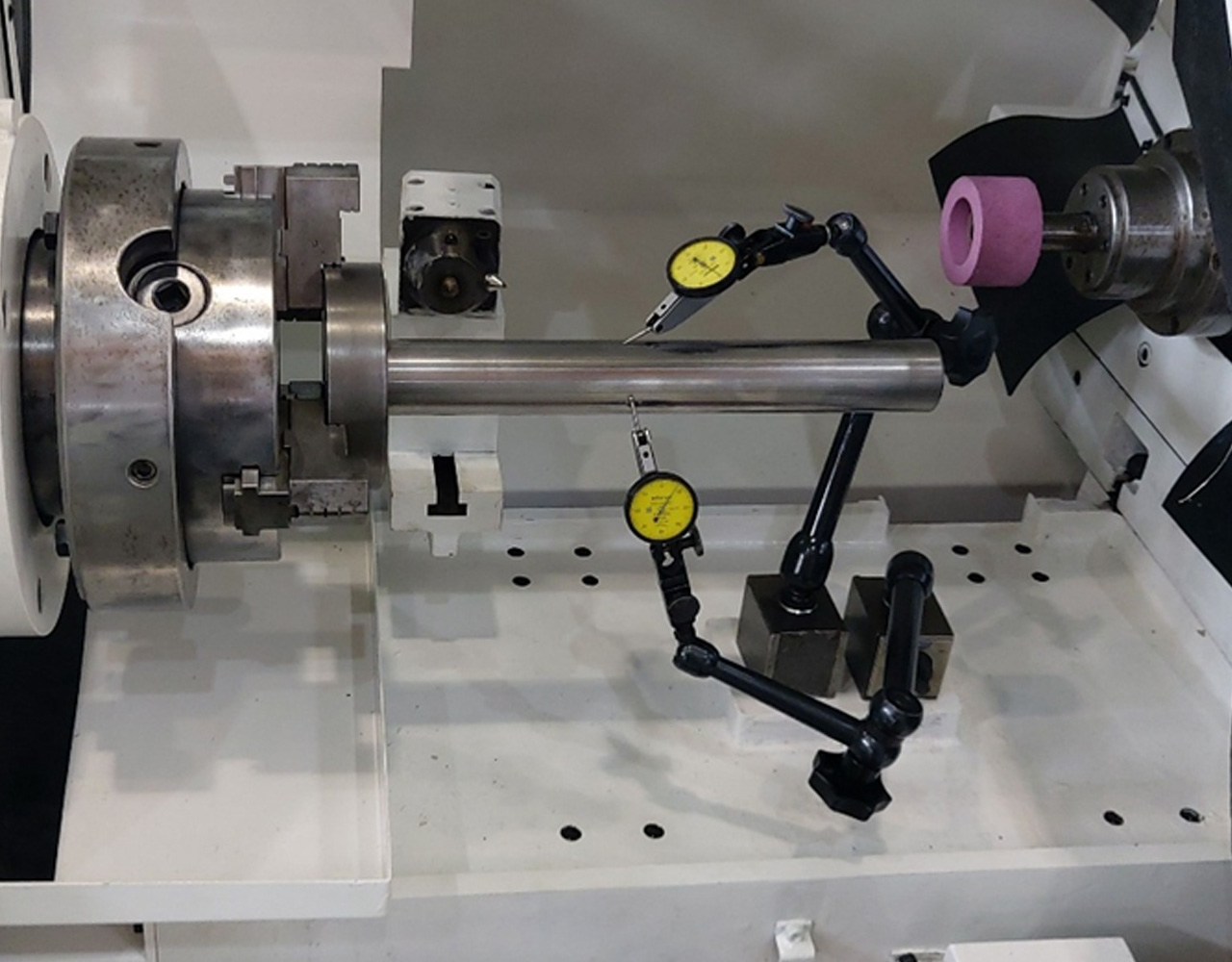

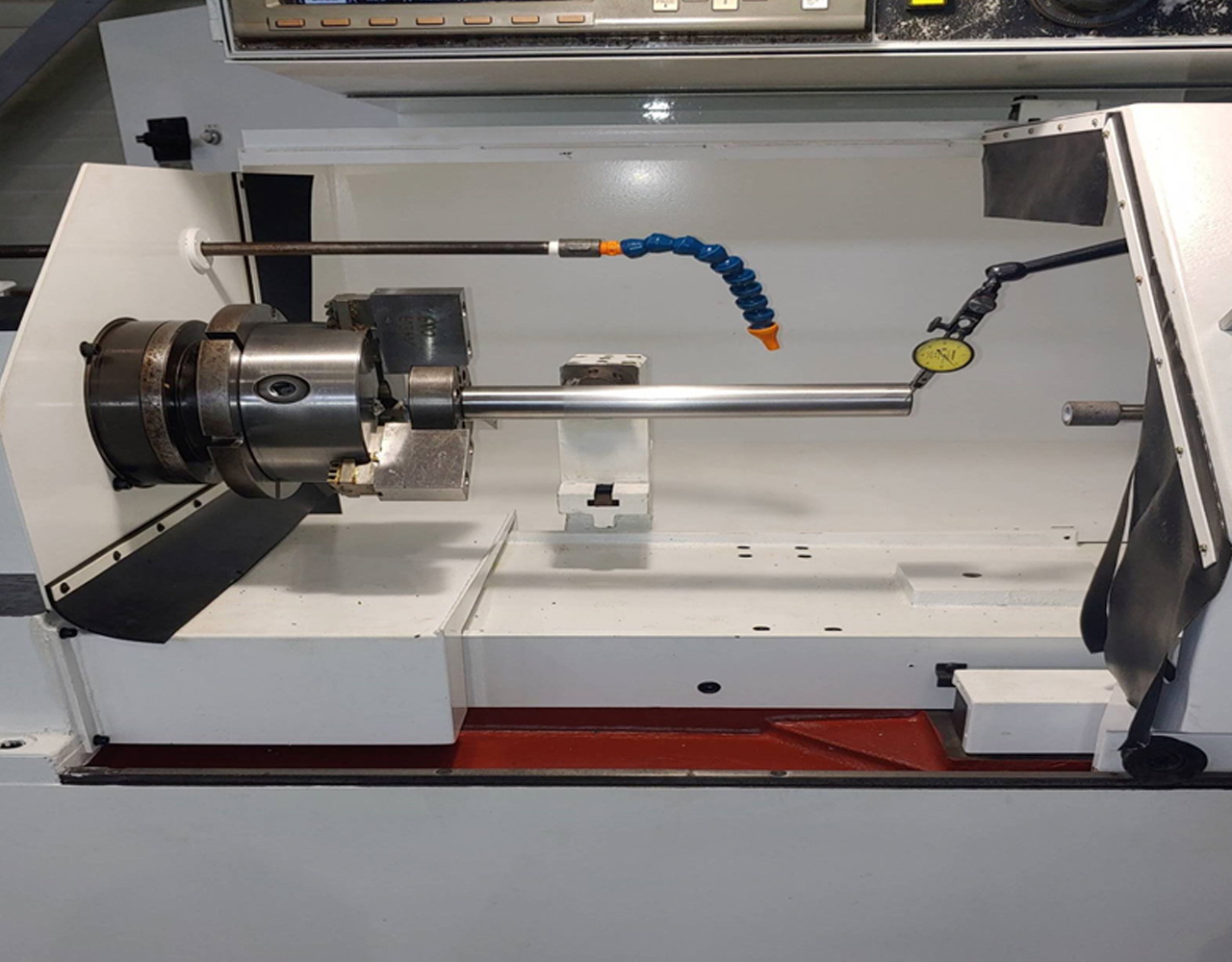

< ▲ 3. Alignment (Vibration): Head Stock (Test Bar at 200mm Point) >
< ▲ 4. Alignment (Vibration): Head Stock (Test Bar at 300mm Point) >

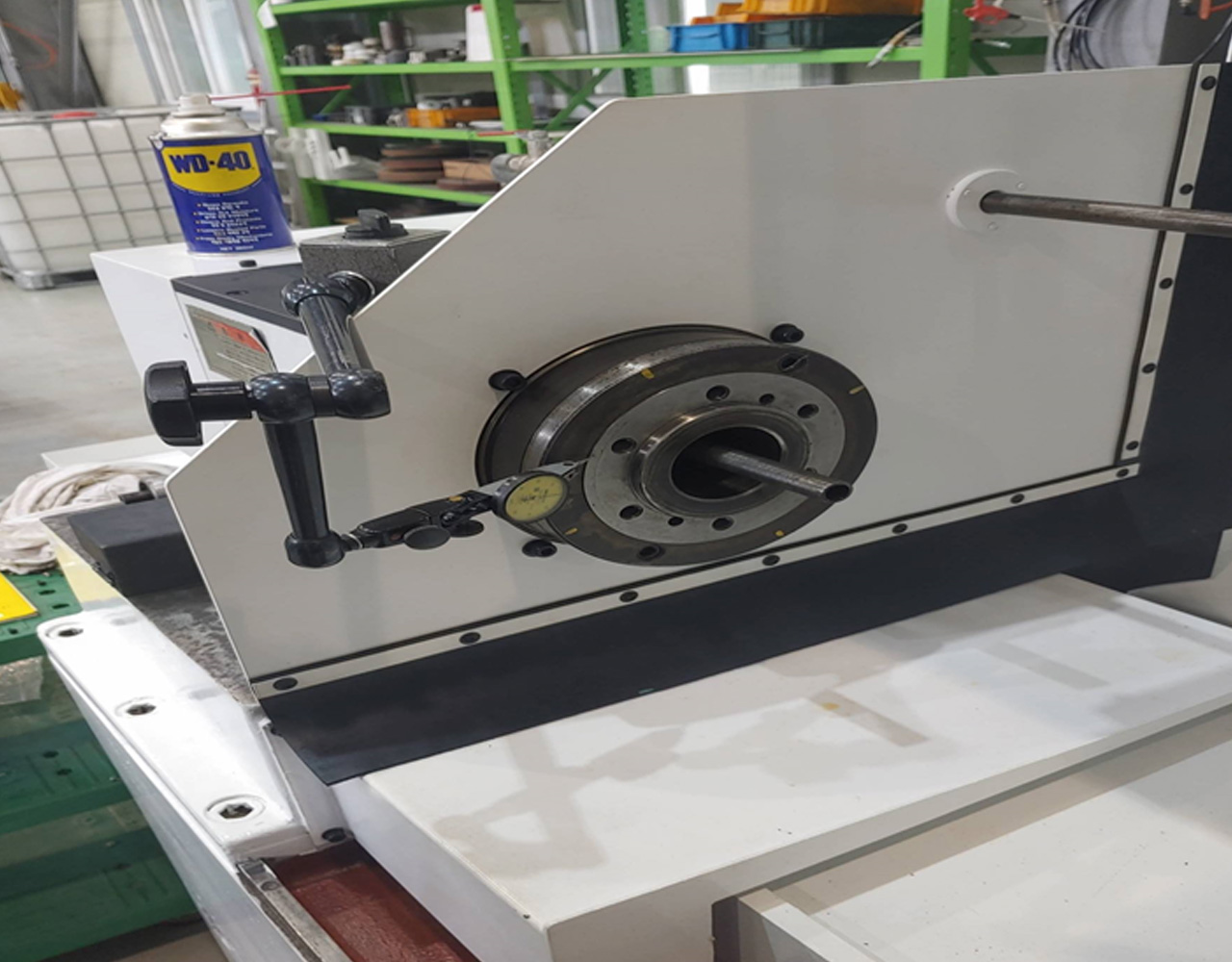

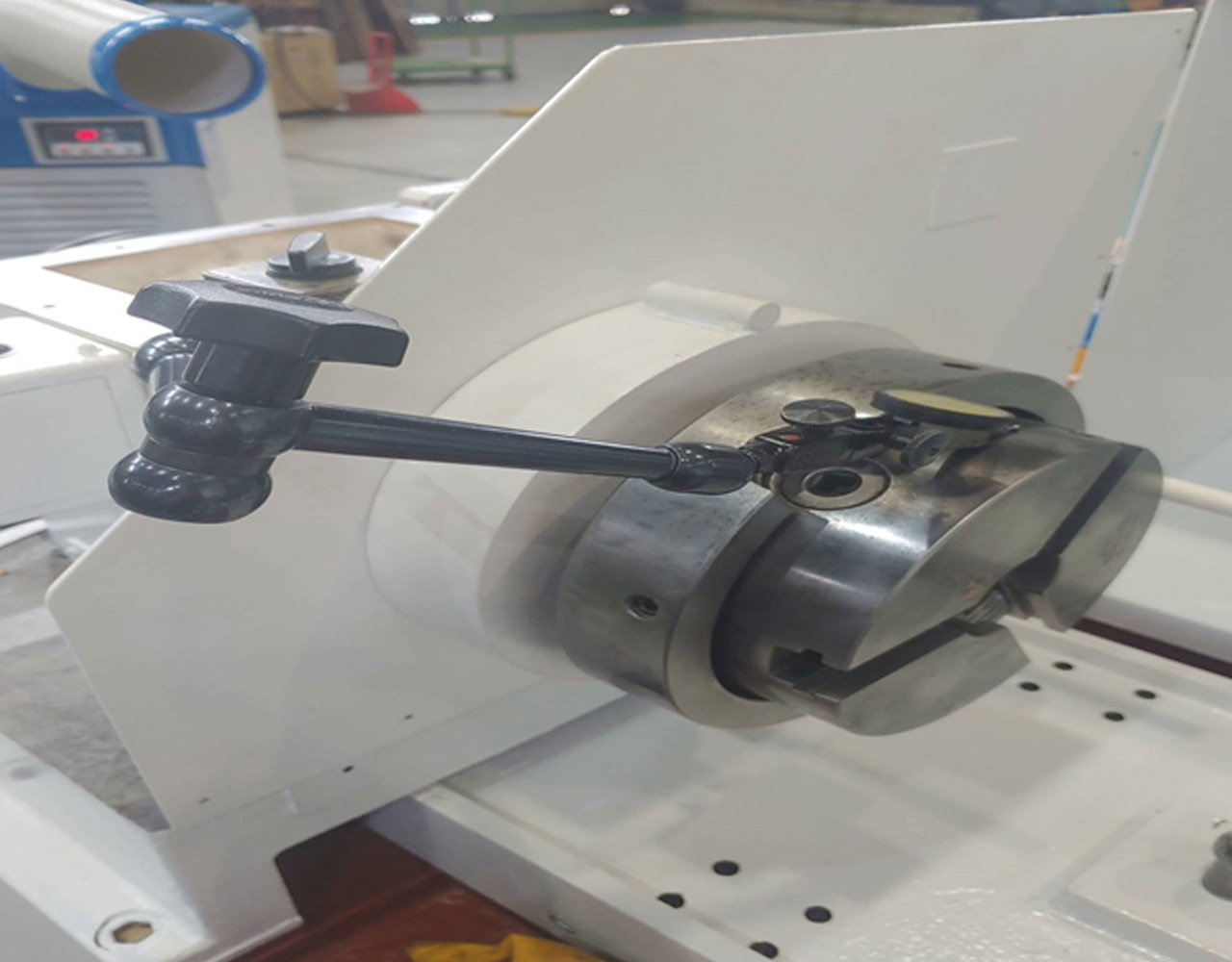

< ▲ 5. Alignment (Run-out): Head Stock Chuck Perimeter >
< ▲ 6. Alignment (Run-out): Head Stock Face >

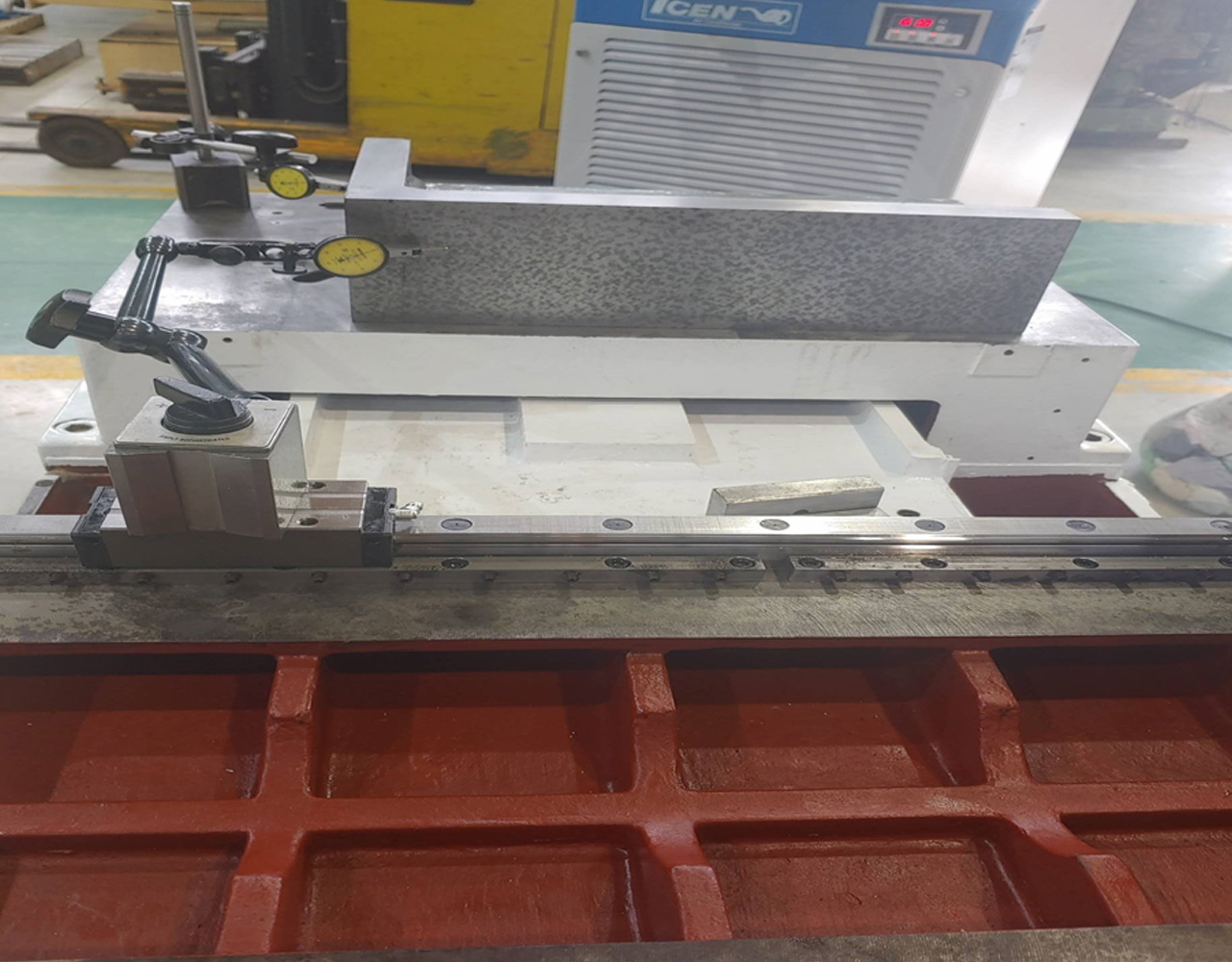

< ▲ 7. Alignment (Parallelism & Perpendicularity): X-AXIS ↔ Z-AXIS >
< ▲ 8. Alignment (Parallelism & Perpendicularity): X-AXIS ↔ Z-AXIS >

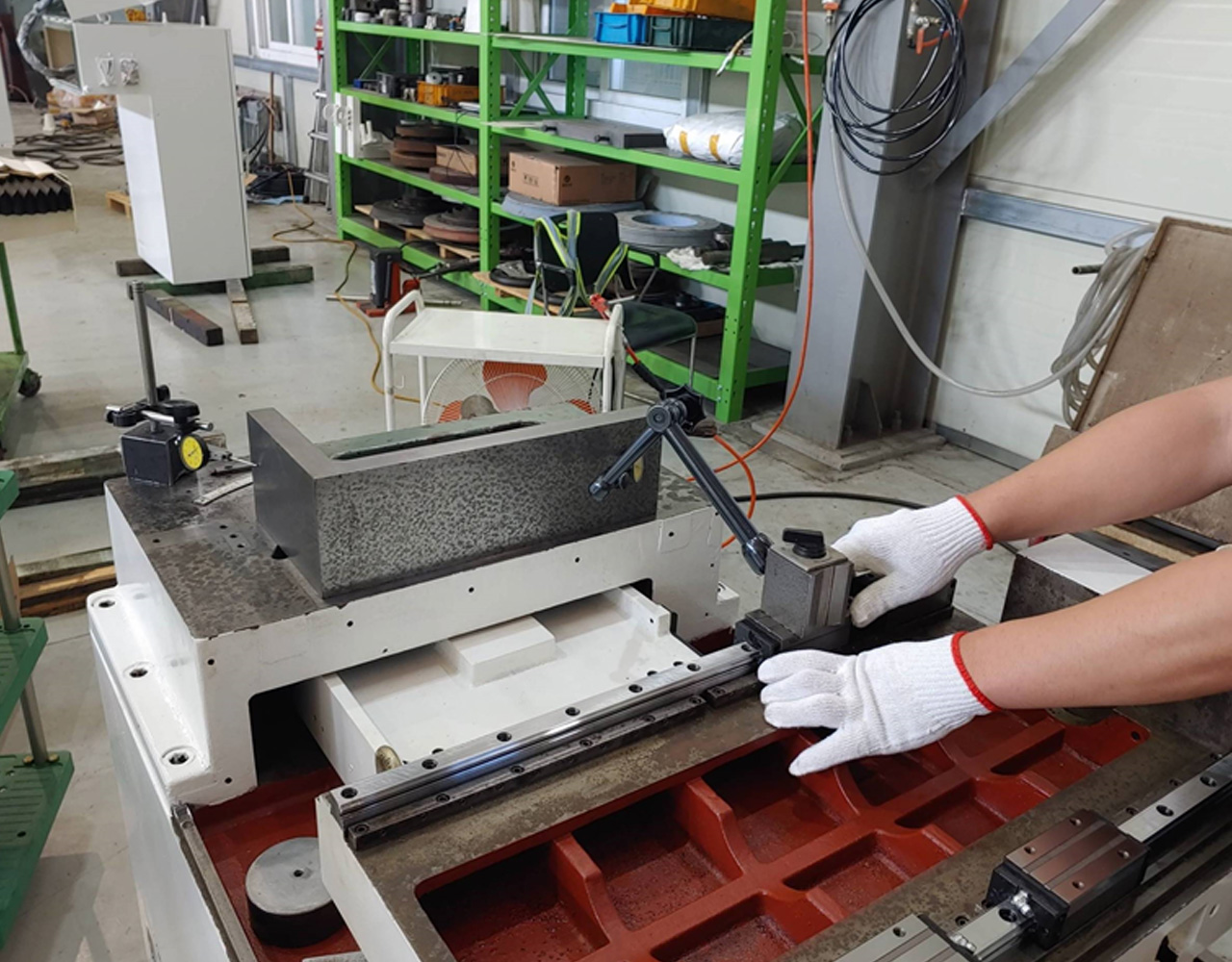

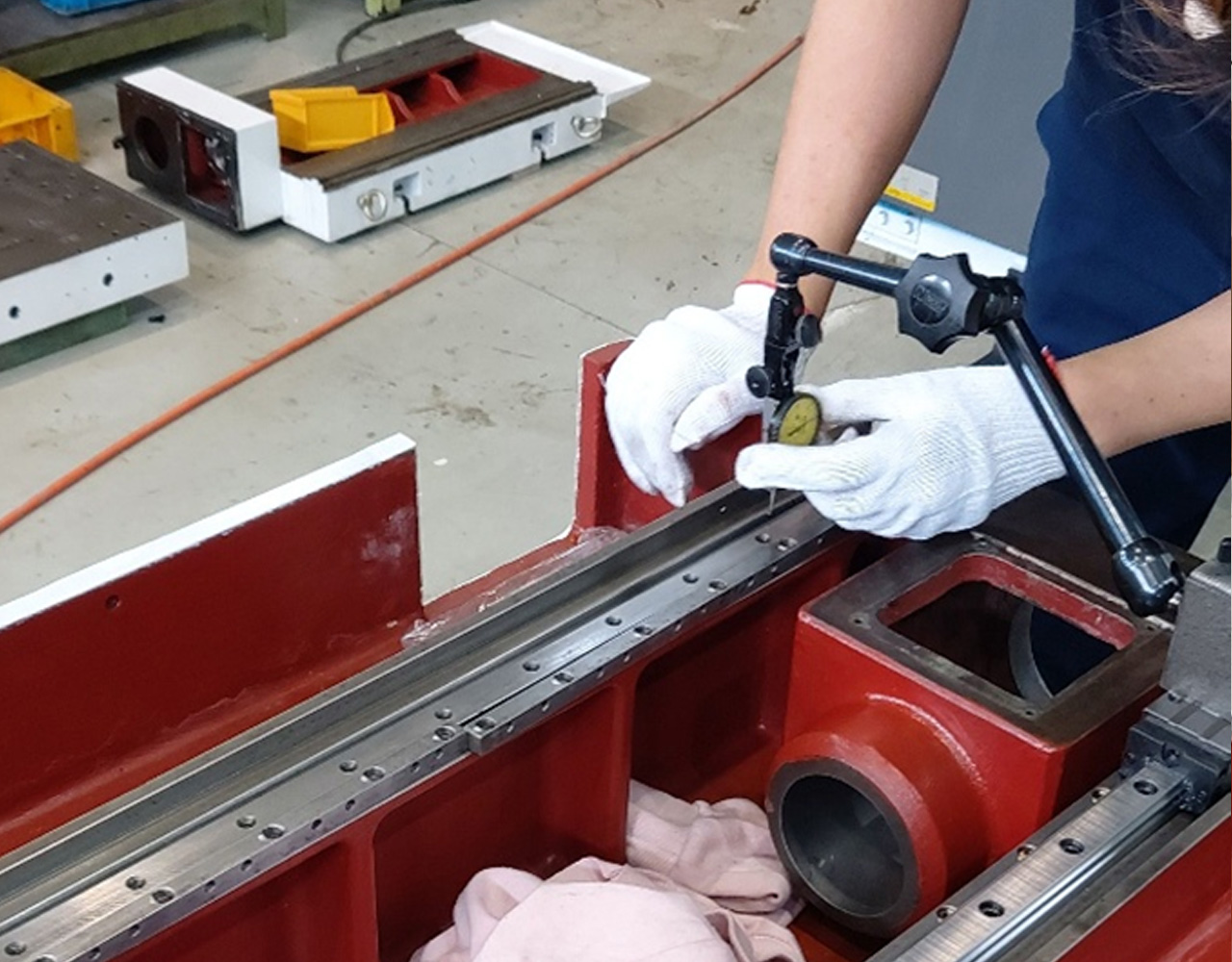

< ▲ 9. Alignment (Parallelism): Z-AXIS LM Guide Top Surface >

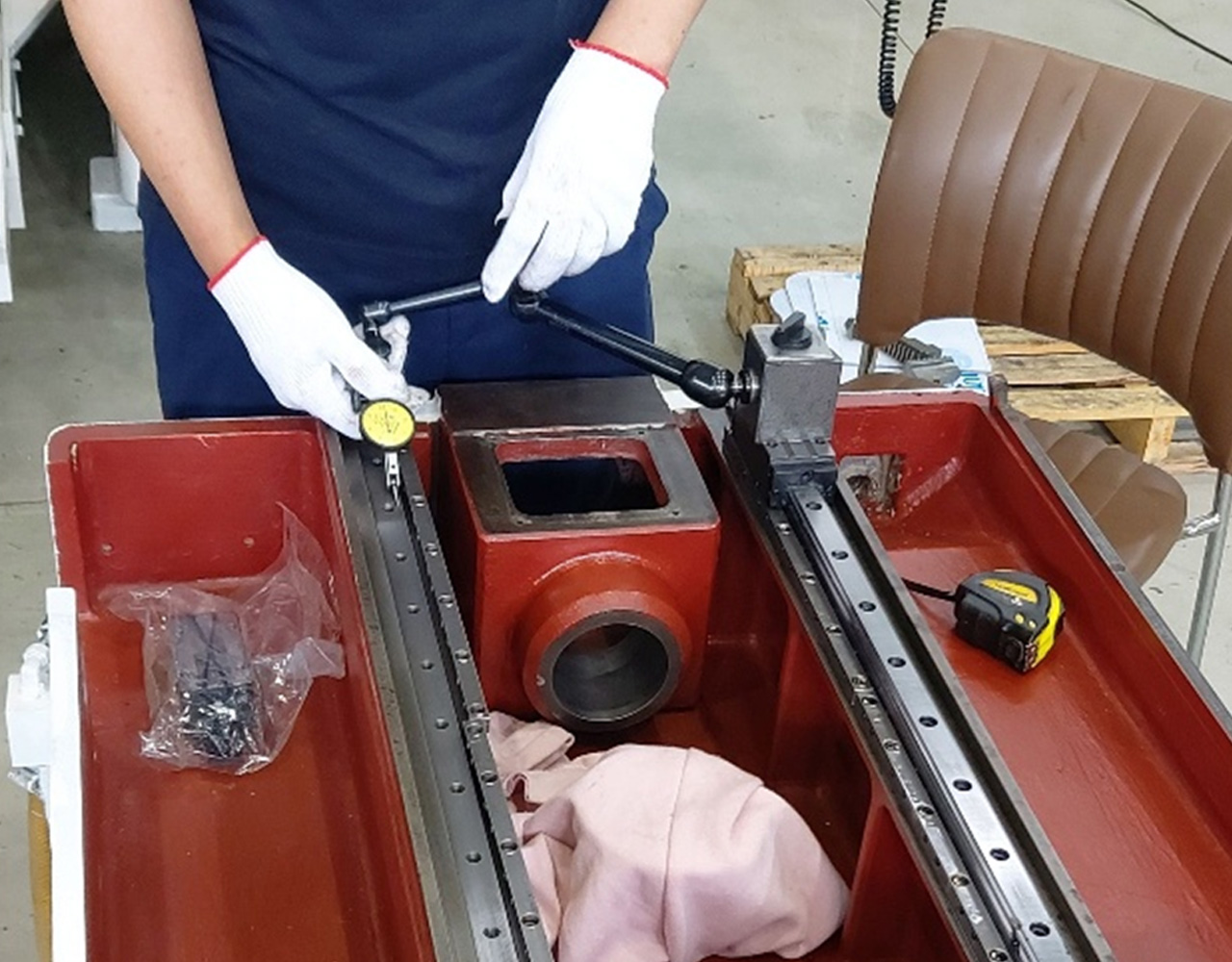

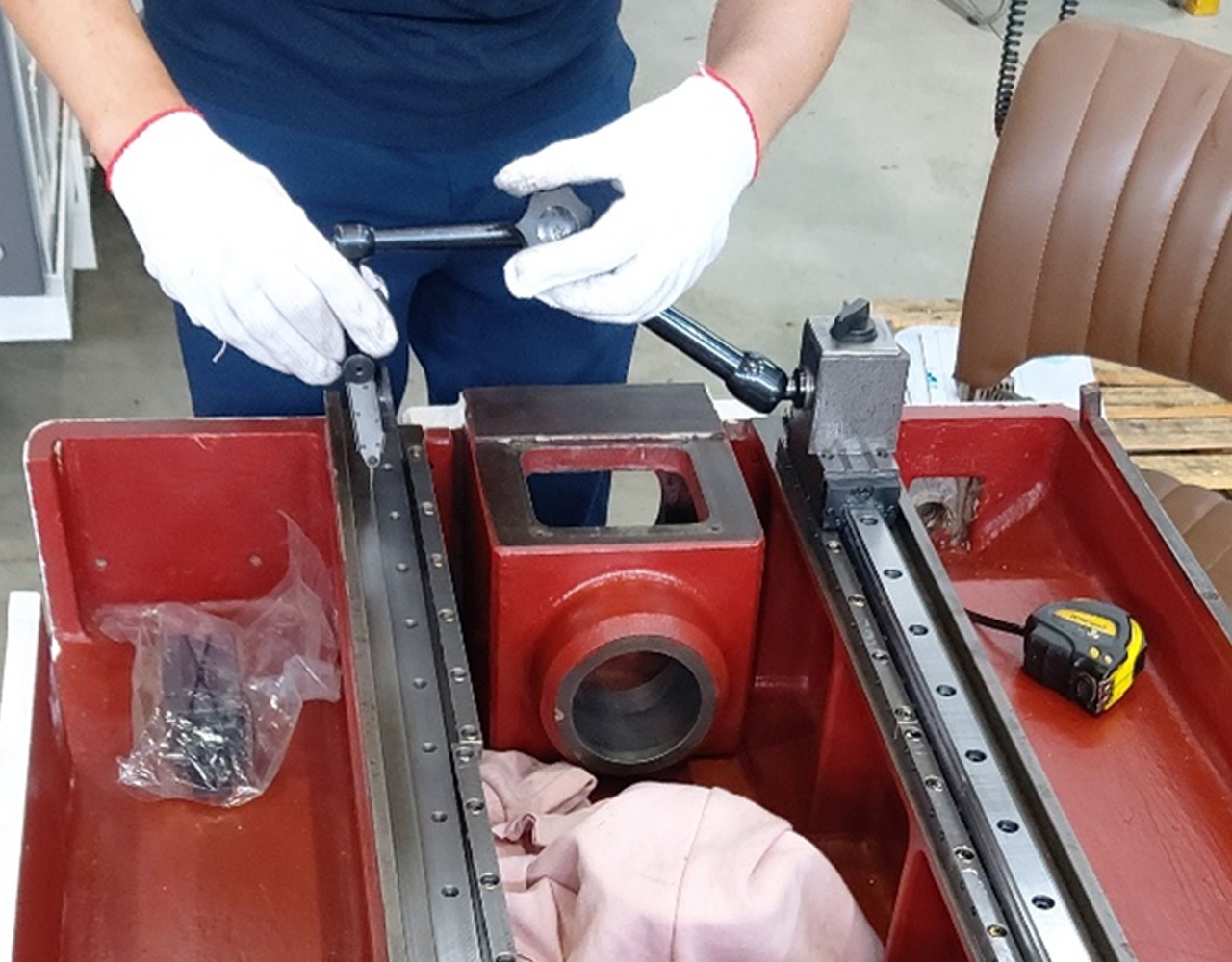

< ▲ 10. Alignment (Parallelism): Z-AXIS LM Guide ↔ Bed Side >

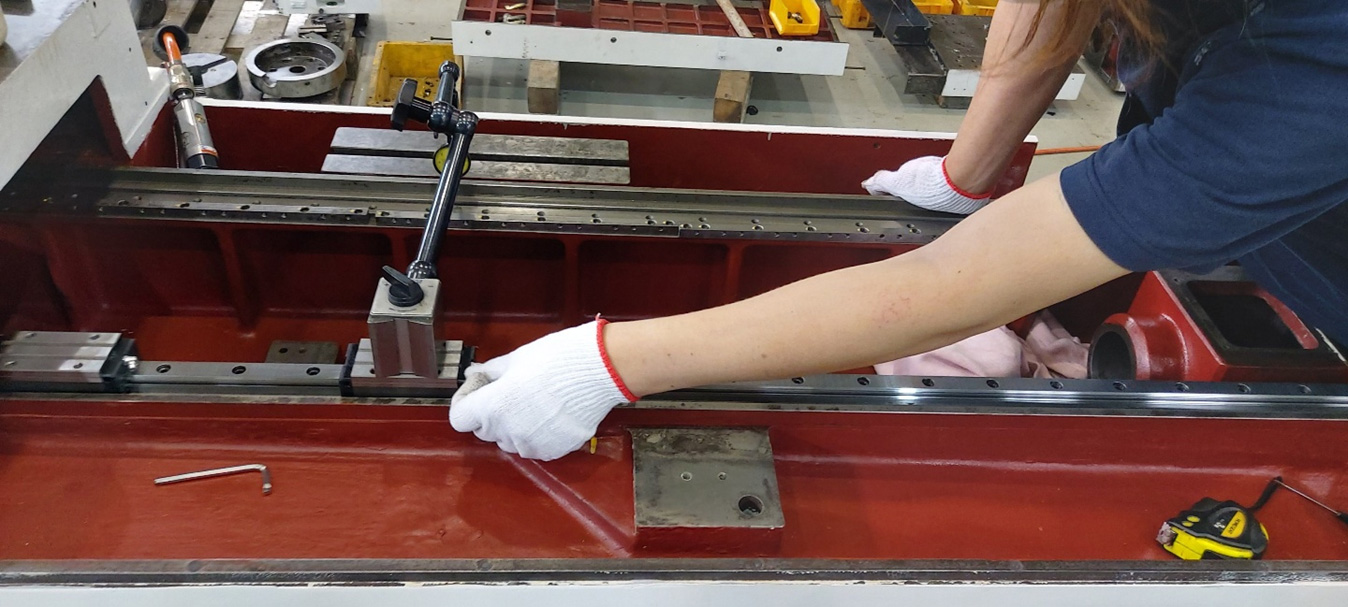

< ▲ 11. Alignment (Parallelism): Z-AXIS LM Guide ↔ Bed Side >
< ▲ 12. Alignment (Parallelism): Z-AXIS LM Guide ↔ Bed Side >

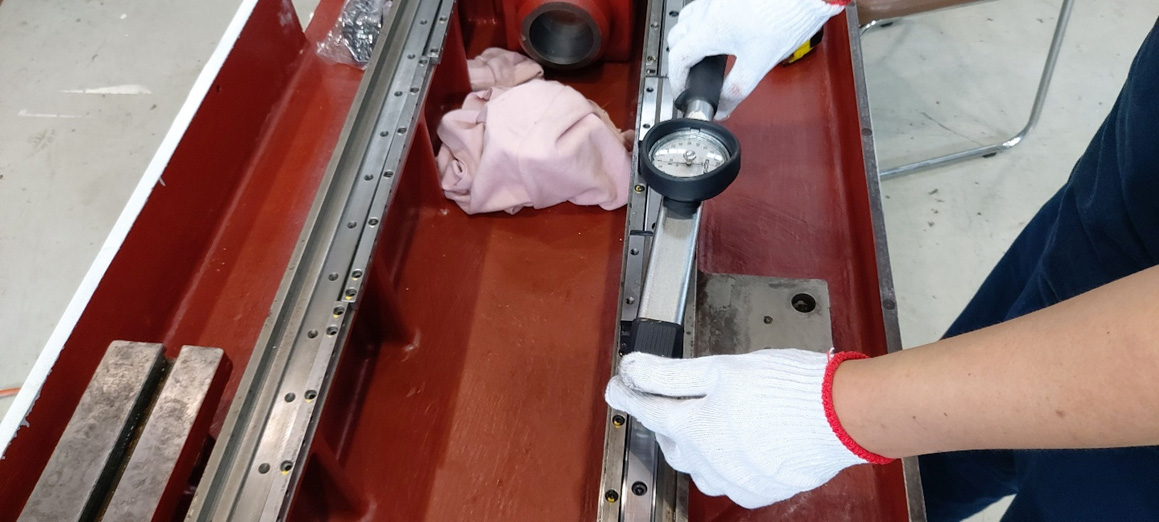

< ▲ 13. LM Guide Assembly: Applying Torque Wrench >
Equipment Name
| Internal Grinder
|
| MAKER | TAISEI |
| MODEL | GRI-60C |
Date of manufacture
| January 2000
|
Electrical system
| FANUC 21-T |
Scale installation
| SONY LF20-2010 |
Key points
| The equipment has been completely overhauled and the static accuracy is guaranteed according to KS and JIS B-6211 standards.
|
Contact information
| Young Tech, Won Junhee +82-10-8915-3386 |
We are selling the GRI-60C and providing details about its operational process.
< ▲ 1. Completed Work on TAISEI GRI-60C >
< ▲ 2. Completed Work: OP Panel >
< ▲ 3. Alignment (Vibration): Head Stock (Test Bar at 200mm Point) >
< ▲ 4. Alignment (Vibration): Head Stock (Test Bar at 300mm Point) >
< ▲ 5. Alignment (Run-out): Head Stock Chuck Perimeter >
< ▲ 6. Alignment (Run-out): Head Stock Face >
< ▲ 7. Alignment (Parallelism & Perpendicularity): X-AXIS ↔ Z-AXIS >
< ▲ 9. Alignment (Parallelism): Z-AXIS LM Guide Top Surface >
< ▲ 10. Alignment (Parallelism): Z-AXIS LM Guide ↔ Bed Side >
< ▲ 11. Alignment (Parallelism): Z-AXIS LM Guide ↔ Bed Side >
< ▲ 12. Alignment (Parallelism): Z-AXIS LM Guide ↔ Bed Side >
< ▲ 13. LM Guide Assembly: Applying Torque Wrench >
Young Tech, Won Junhee
+82-10-8915-3386
