HEAD STOCK Machining

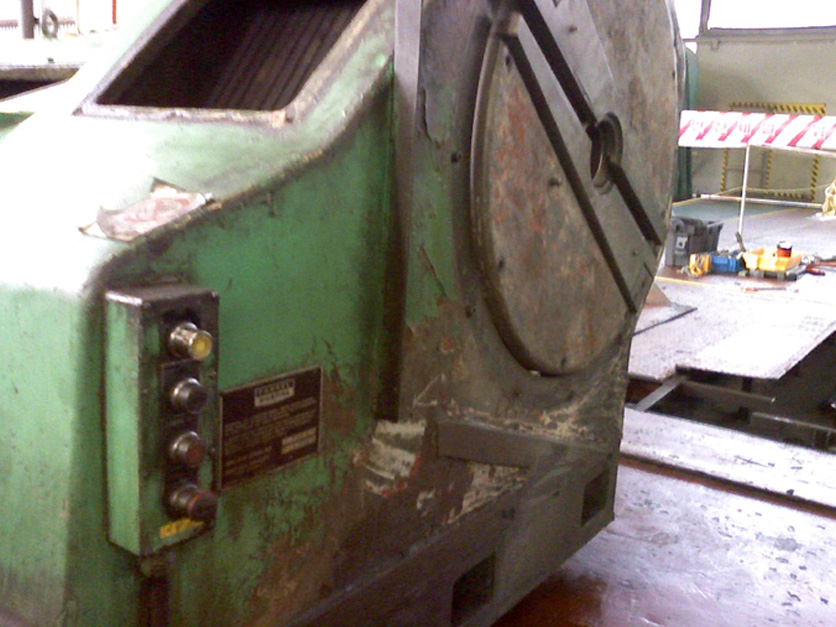

< ▲ 1. HEAD ASS'Y disassembly before >

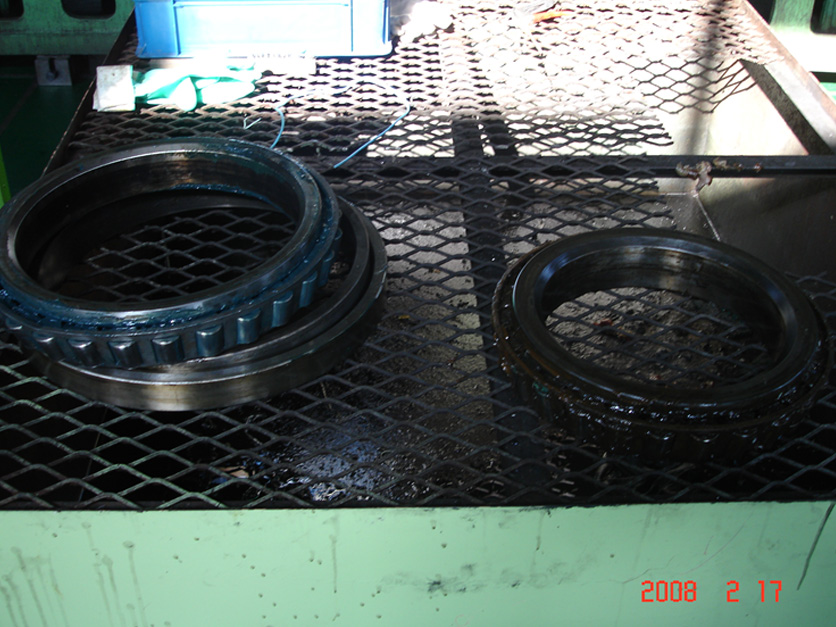

< ▲ 2. Main bearing disassembly condition >

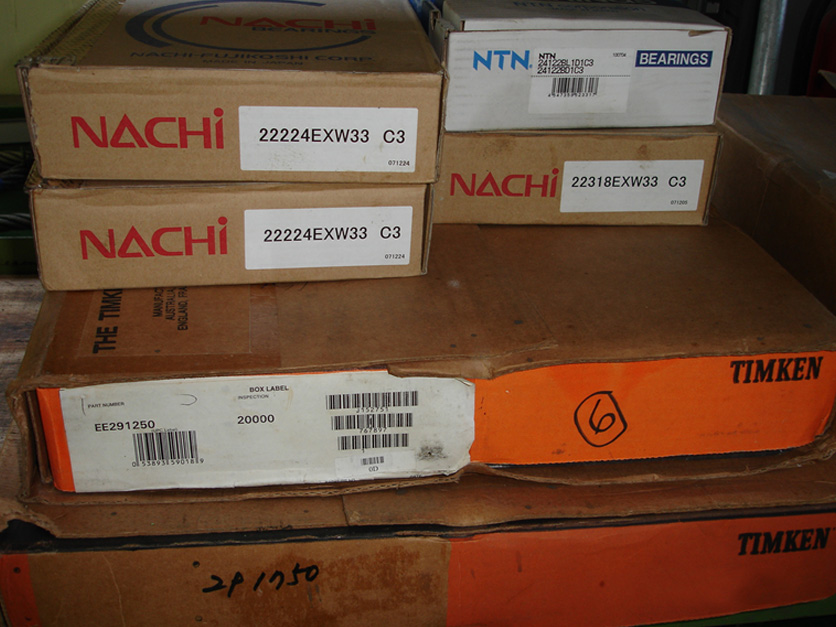

<▲ 3. New MAIN BEARING purchased → awaiting assembly >

< ▲ 4. HEAD STOCK internal, power transmission components >

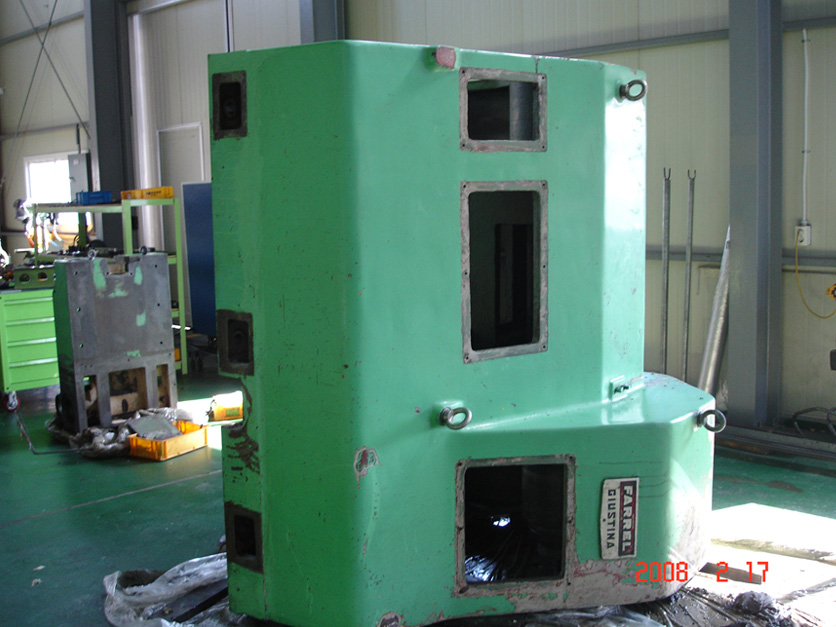

< ▲ 5. HEAD STOCK main body, cleaning and PAINTING preparation >

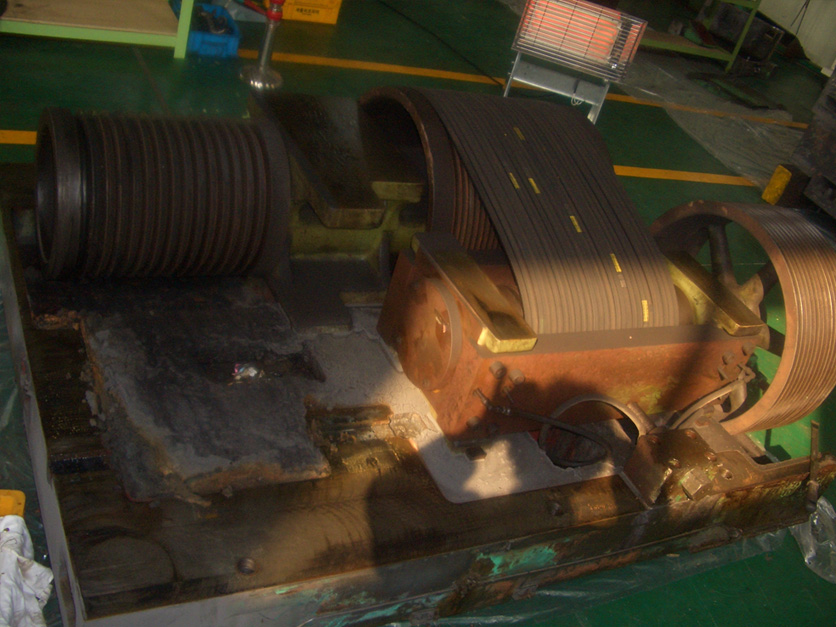

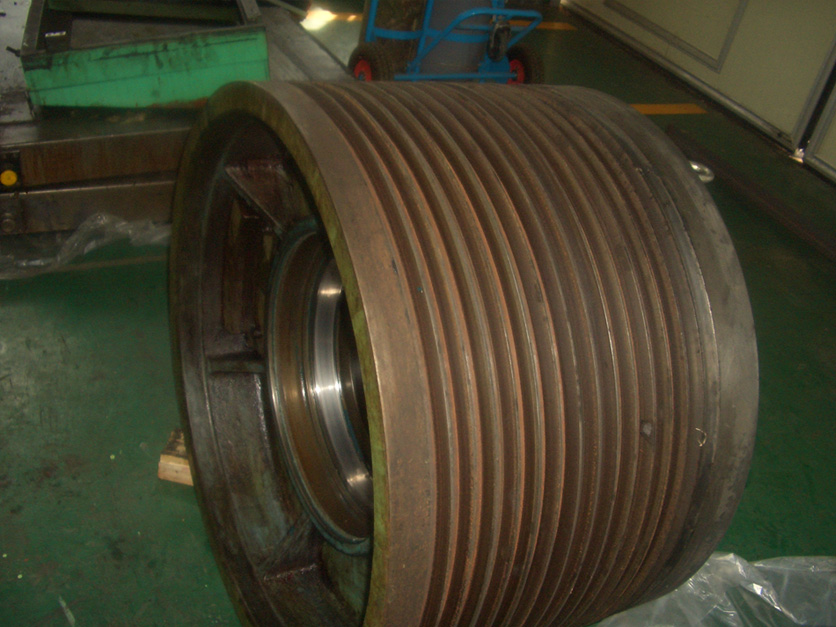

< ▲ 6. HEAD STOCK MAIN PULLEY disassembly condition >

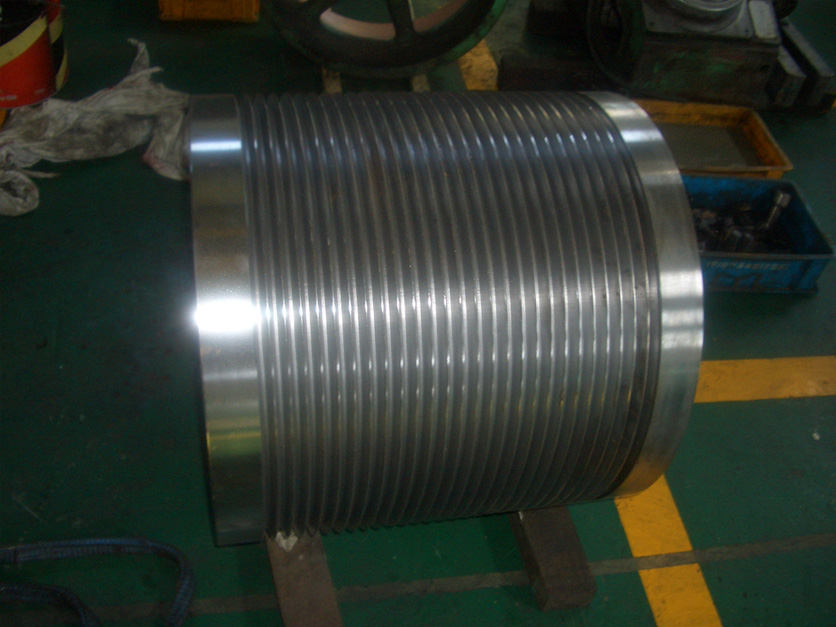

<▲ 7. HEAD STOCK MAIN PULLEY, after V-face machining>

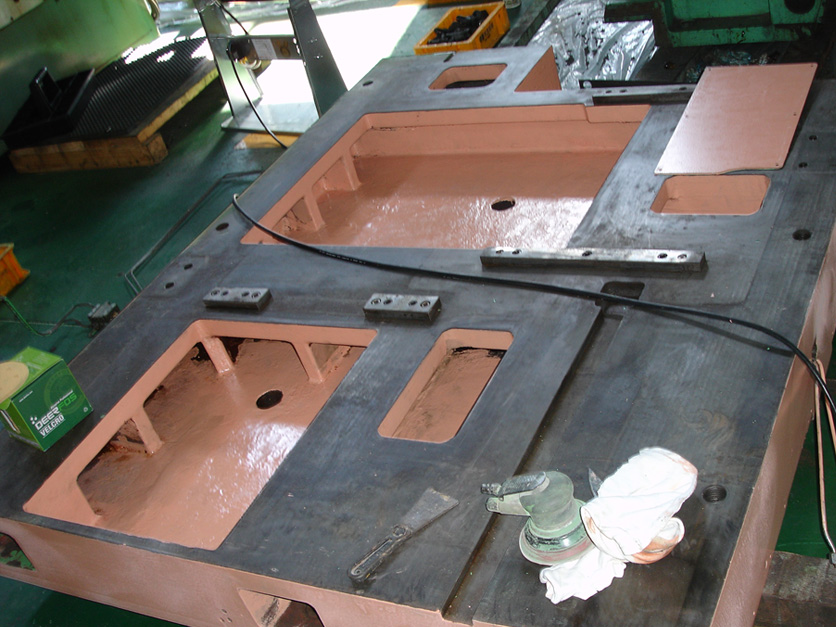

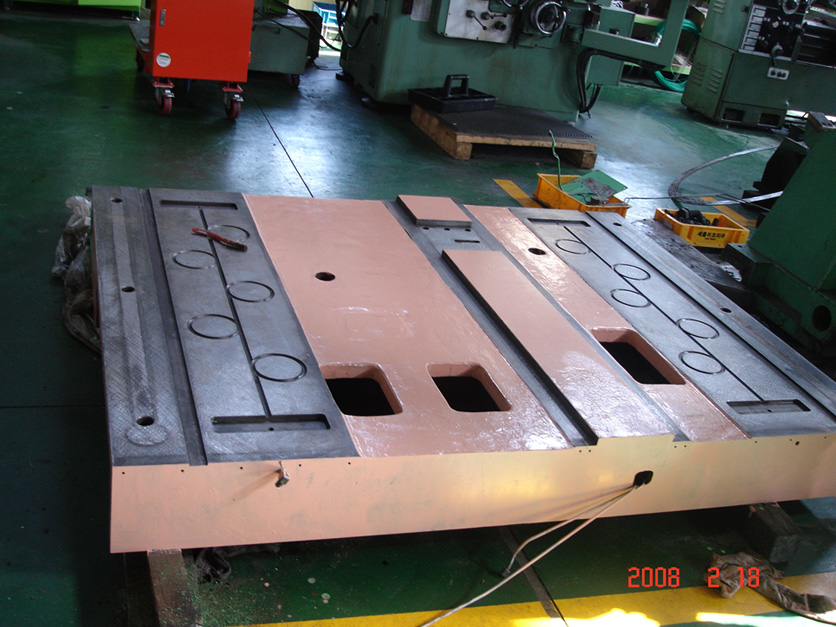

<▲ 8. HEAD STOCK lower base, undergoing PAINTING>

<▲ 9. HEAD STOCK lower base, cleaning and ongoing PAINTING >

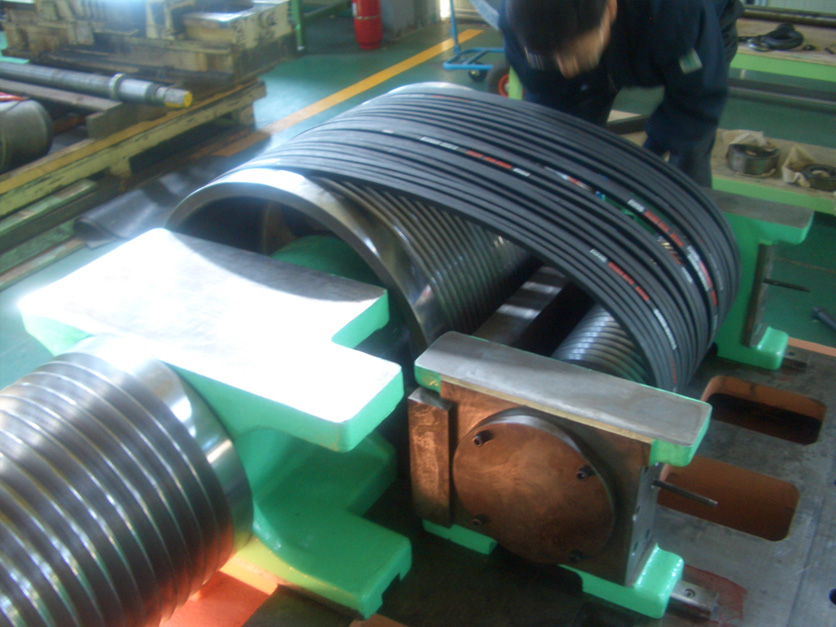

< ▲ 10. Assembly of HEAD STOCK PULLEY >

< ▲ 11. Assembly of HEAD STOCK upper cover >

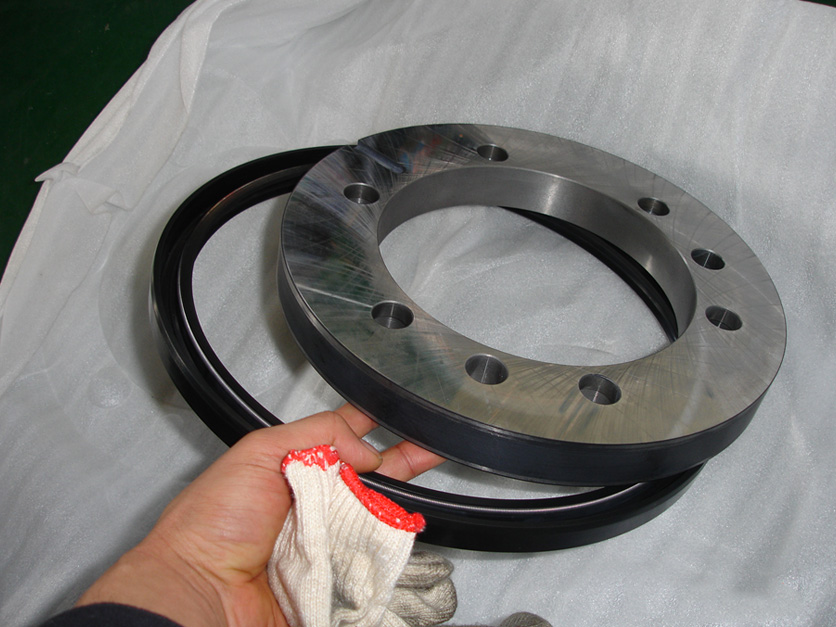

< ▲ 12. HEAD STOCK seal cover, after CERAMIC COATING >

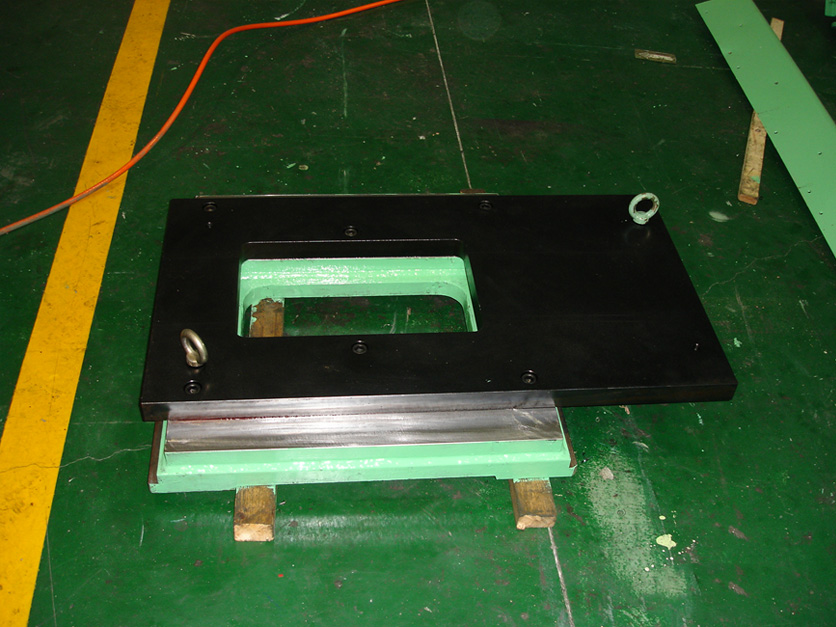

< ▲ 13. New HEAD STOCK motor base >

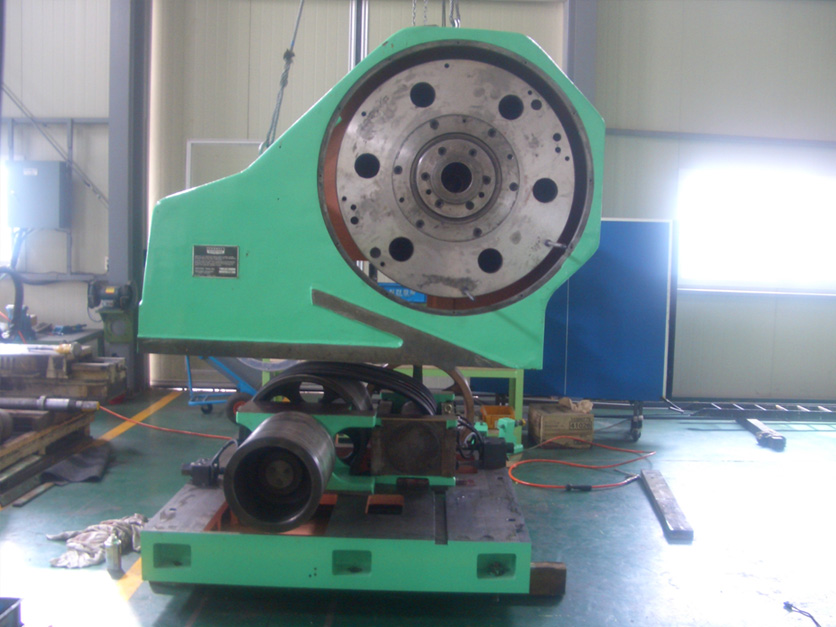

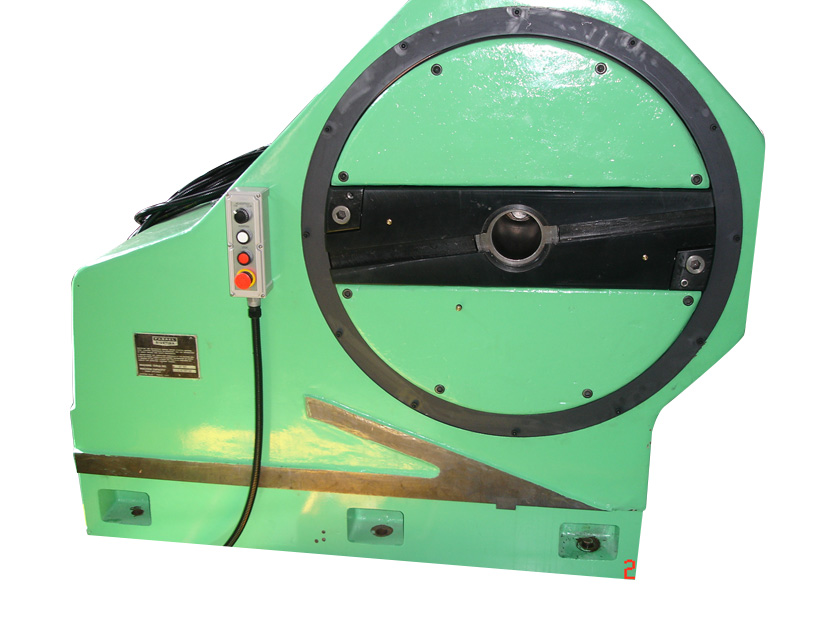

< ▲ After HEAD STOCK ASS'Y assembly >
